Advanced System 3000 V8.9 Multimedia CAD/CAM System for Windows Level 1 -- Includes 2- or 3-axis programming without surfacing, CAD file links and choice of automatic post processing for a Mill, Lathe, Foam Cutter, Grinder, EDM, Router, Laser, Plasma Cutter, Water Jet or Punch Press $1,295 Full Service or DIY $99 - See website QTY Put Item In Cart
Level 5 -- Includes all the Level 1 features with the addition of a solid modeled machine tool animated simulator, file transfers from your machine in a remote/unattended automatic mode, 6 automatic mill roughing features and 10 lathe roughing features. $2,595 Full Service or DIY $199 - See website QTY Put Item In Cart
Level 10 -- Includes all the Level 5 features with the addition of parametric customizable utility feature. $5,995 Full Service or DIY $475 - See website QTY Put Item In Cart
Level 20 -- Includes all the Level 10 features with the addition of over 20 automatic 3D surfacing features. Mathematical, multiple solid surfaces are created in up to 16 million colors. Full Service $13,995 - See website QTY Put Item In Cart
Level 20 Plus -- Includes all the Level 20 features with the addition of the Premium IGES Plus Translator - Add $895 to Level 20 price. - See website QTY PUT Item In Cart
Level 30 -- Includes all the Level 20 features with the addition of features that will support 5-axis simultaneous machine tools. Full Service $17,995 - See website QTY Put Item In Cart
Level 30 Plus -- Includes all the Level 30 features with the addition of the Premium IGES Plus Translator Add $895 to Level 30 price. - See website QTY PUT Item In Cart
CNC Professional Software PC Based CNC Machine Tool Controller Software for up to 8 axes for any CNC machine type. Includes configurable operator screen with high-resolution solid modeled graphics, configurable G code, AS3000 Level-1 3D multimedia CAD/CAM system, diagnostic software, servo tuning software, logic process editor and desktop machine logic simulation test mode. $4,995 Full Service or DIY $1,248- See website *USB Key is required QTY Put Item In Cart
CNC Lite Software CNC Lite PC-Based CNC Machine Tool Controller Software for up to 8 axes for any CNC machine type. Includes configurable operator screen, limited configurable G&M codes, diagnostic software, servo tuning software and logic process editor. $1,995 Full Service or DIY $498 - See website *USB Key is required QTY Put Item In Cart
CNC Plus Software CNC Plus (Bonus Pac options for CNC Lite) -- Includes (G40, G41, G42) Tool comp, (M98, M99) Subroutine calls, (G94, G95) IPR & IPM for Lathes, (G74) Lathe peck drilling, (G96, G97) Constant surface feed for Lathes, Lathe Threading and Tapping, Backlash axes compensation, Lead screw axes mapping compensation, Advanced Mid-Program start allows program to begin anywhere. Add $1500 to CNC Lite Full Service or add $377 to the CNC Lite DIY price - See website *USB Key is required QTY Put Item In Cart
Graphical OI Graphical Operator Interface Software only for up to 8 axes for non-CNC applications. Includes configurable general automation operator interface tools, complete general automation language, interacts with native motion card commands, diagnostic software, servo tuning software and logic process editor. $495 Full Service or DIY $199- See website *USB Key is required QTY Put Item In Cart
DataNest Nesting Software for optimizing and automatically nesting any shape parts. Accepts DXF files for import. Runs in Windows with a fill-in-the-blank screen. Easiest nesting ever. NOTE: Requires AS3000 CAD/CAM Software $995 Full Service or DIY $248- See website QTY Put Item In Cart
Art2CAM Art2CAM creates 3D tool paths from bitmapped color coded or black & white dithered pictures or images. NOTE: Requires AS3000 CAD/CAM Software $1,995 Full Service or DIY $498- see website QTY Put Item In Cart
Raster2Vector Raster2Vector - Converts Bitmaps, Jpeg, TIF and PCX images to DXF CAD files or vector files consisting of lines, arcs and circles. $199 Full Service or DIY $48- see website QTY Put Item In Cart
Laser Probe Routines 1. Digitizing Probing Routines creates 3D point cloud file to be used by a variety of CAD/CAM systems 2. Laser Probe - New low-cost, high-speed laser probe digitizing with automatic height control sensing for increased scanning range and speed. Price based on application Full Service only- see website QTY Put Item In Cart

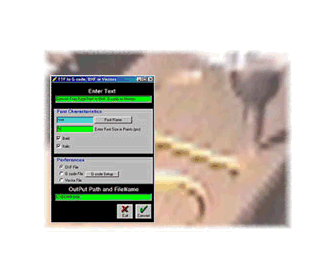

TTF Engraver Standalone True Type Font Converter- Converts standard Windows true type fonts into DXF, Vector or G Code files. Quick and easy engraving. $199 Full Service or DIY $48- see website QTY Put Item In Cart
4-axis EDM 4-Axis Wire creates precisely coordinated tool paths for controlling 4-axis wire EDM or Hot Wire Foam Cutter machines. NOTE: Requires AS3000 CAD/CAM software. $995 Full Service or DIY $248- QTY PUT Item In Cart
SmartPath SmartPath -- A Patent Pending intelligent tool path optimizer that automatically adjusts feedrates, accel rates and decel rates based on a set of rules and spindle torque defined on the SmartPath screen. Over 80 personal preference profiles can be saved to recall different cutting conditions for materials, vendors, machine types or user preferences. $795 Full Service or DIY $198- See website QTY Put Item In Cart

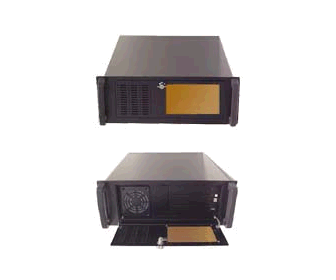

Microsystem Industrial Computer Industrial Rack Mount Computer. CamSoft's brand of affordable computers. Comes ready to use with pre-installed, pre-configured and pre-tested software & hardware per your order. Computer specs vary. $995- see website QTY Put Item In Cart 750 Watt Battery Back Up highly recommended $159 QTY Put Item In Cart

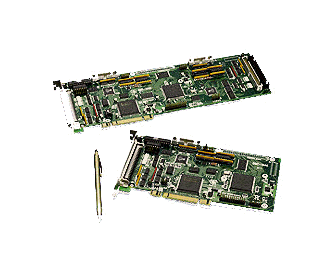

CS-18x60 CS18060 (Ultra High Speed PCI card) -- Includes: separate servo/stepper CPU, separate memory and operating system with labeled and silk screened optically isolated interconnect module to connect the computer to the machine, extra auxiliary encoder channels to read hand wheels, spindles, turrets or tool changers, 7 analog inputs to read voltage, feedrate pot override or spindle speed override, digital I/O and cables. see website 2 Axis+22 I/O (CS18260) = $2,040 QTY Put Item In Cart 3 Axis+25 I/O (CS18360) = $2,440 QTY Put Item In Cart 4 Axis+28 I/O (CS18460) = $2,740 QTY Put Item In Cart 5 Axis+71 I/O (CS18560) = $3,760 QTY Put Item In Cart 6 Axis+74 I/O (CS18660) = $3,960 QTY Put Item In Cart 7 Axis+77 I/O (CS18760) = $4,160 QTY Put Item In Cart 8 Axis+80 I/O (CS18860) = $4,360 QTY Put Item In Cart

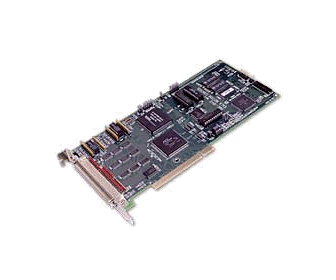

CS-18x20 Series CS18020 (PCI) -- Includes: separate servo/stepper CPU, separate memory and operating system with labeled and silk screened optically isolated output interconnect module to connect the computer to the machine, digital I/O and cables. see website 2 Axis+22 I/O (CS18220) = $1,390 QTY Put Item In Cart 3 Axis+25 I/O (CS18320) = $1,540 QTY Put Item In Cart 4 Axis+28 I/O (CS18420) = $1,690 QTY Put Item In Cart

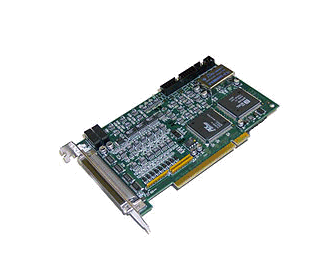

CS16600 CS16600 DSP Based Motion Controller -- Includes: 32-bit true closed loop servo PCI card, Commercial Model. Optically isolated terminal strip/shielded cable to connect the computer to the machine, 6 encoder channels to read hand wheels, spindles, turrets or tool changers, 6 analog inputs to read voltage, feedrate pot override or spindle speed override, 26 digital I/O and cables 6 Axis+26 I/O (CS-16600) = $594- see website QTY Put Item In Cart

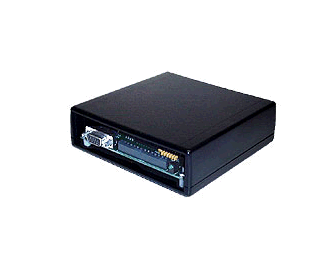

CS-14000 CS-14000 (USB) external 4-axis step and direction board, serial or USB and power cables, 100 KHz, 6 inputs, 7 outputs, 1 overtravel input and 1 E-stop. Optionally can also control DC brush or AC brushless servo motors in pulse & direction mode. $395-see website QTY Put Item In Cart

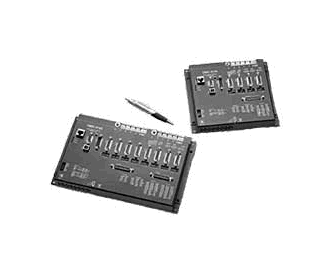

CS-40x00 & CS-41x30 CS41030 (Ethernet) -- Includes: separate servo/stepper CPU, separate memory and operating system. 100 base T Ethernet, optically isolated digital I/O, Extra auxiliary encoder channels to read hand wheels, spindles, turrets or tool changers, 8 analog inputs to read voltage, feedrate pot override or spindle speed override, digital I/O and DB style terminal cable connections. CS40x00 is a higher speed model of the same motion box see website Optional 1 meter to 7.5 meter cable that extends cable length from the DB style connectors. $35/each for 1 meter, $50/each for 7.5 meter QTY Put Item In Cart Optional Screw-on terminal break out boards that plug into DB style connectors. $75 each QTY Put Item In Cart 1 Axis+27 I/O (CS41130) = $1,245 or (CS40100) = $1,595 QTY Put Item In Cart 2 Axis+30 I/O (CS41230) = $1,345 or (CS40200) = $1,695 QTY Put Item In Cart 3 Axis+33 I/O (CS41330) = $1,495 or (CS40300) = $1,995 QTY Put Item In Cart 4 Axis+36 I/O (CS41430) = $1,645 or (CS40400) = $2,295 QTY Put Item In Cart 5 Axis+55 I/O (CS41530) = $1,870 or (CS40500) = $2,695 QTY Put Item In Cart 6 Axis+58 I/O (CS41630) = $1,970 or (CS40600) = $2,895 QTY Put Item In Cart 7 Axis+61 I/O (CS41730) = $2,070 or (CS40700) = $3,045 QTY Put Item In Cart 8 Axis+64 I/O (CS41830) = $2,170 or (CS40800) = $3,195 QTY Put Item In Cart
I/O-48RELAY(PCI or PCI-e) 48 Optical Isolated I/O points. Includes Optically Isolated Relay Rack & Cable. $756 see website QTY Put Item In Cart

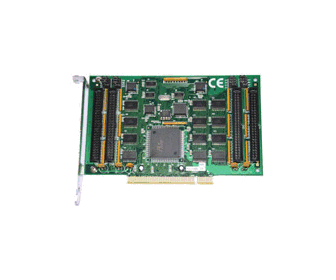

96RELAY(PCI or PCI-e) 96 Optical Isolated I/O points. Includes Optically Isolated Relay Rack & Cable. $1,046 see website QTY Put Item In Cart

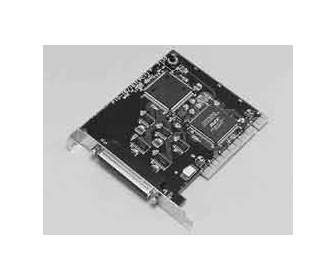

I/O-32RELAY(PCI) 32 Optical Isolated I/O points. Includes Optically Isolated Relay Rack & Cable. $620 see website QTY Put Item In Cart
DIGITAL I/O box Standalone Digital Input/Output Box and RS232 Cable Provides 14 Digital Inputs or Outputs @ 5VDC. Uses serial or USB ports. $159 see website QTY Put Item In Cart
Standalone Analog Input Box Provides 4 analog inputs for voltages between +/- 10 vdc. Uses serial or USB ports. $295 see website QTY Put Item In Cart
Standalone Analog Output Box Provides 4 analog outputs for voltages between +/- 10 vdc. Uses serial or USB ports. $295 see website QTY Put Item In Cart
Standalone Handwheel Pulse Counter Box Reads digital quad hand wheel pulses through serial box. Uses serial or USB ports. $159 see website QTY Put Item In Cart

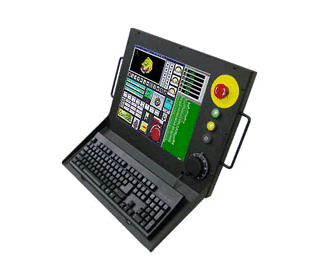

CamSoft Touch Screen Controller Full replaceable keyboard, 19" thin flat LCD 1024x768-16 million color Touch Screen, Push buttons: Cycle Start, Feed Hold, Emergency Stop, Key lock On/Off switch, Extension monitor, power & keyboard cables, two side handles, hand wheel, uses 100mm VESA standard mounting on back center. $2,895 see website QTY Put Item In Cart

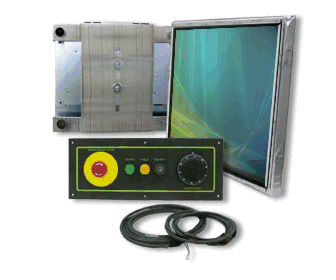

Operator Station Kit Mountable 19" Flat Screen Frameless Monitor, 2 adjustable monitor mounting brackets, Operator Plate Panel, E-Stop, Hand Wheel, Key Switch, 2 Lit Push Buttons and Cables see website LCD monitor model $1,295 QTY Put Item In Cart Touch Screen model $1,695 QTY Put Item In Cart

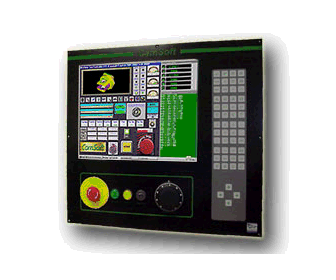

CamSoft Flat Panel Cabinet Mount Controller 19” Flat LCD screen, 56 programmable buttons and hand wheel $1,995 see website QTY Put Item In Cart OPTION: 19” Flat Touch Screen monitor add $395 QTY Put Item In Cart OPTION: Standard VESA arm mountable pendant cabinet enclosure add $495 QTY Put Item In Cart

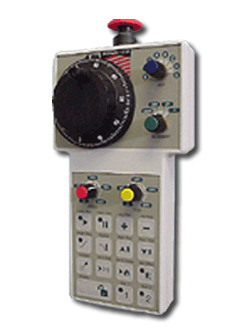

CS Hand Held Controller Hand Wheel, 2 feed/speed pots, 8 axis switch, increment switch, E Stop, 15 push buttons, 25 pin cable. $1,295 see website QTY Put Item In Cart

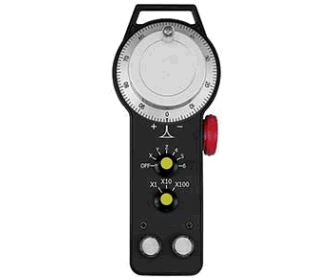

Tool Room Hand Held Pendant Pulse Wheel Generator, 6 axes & increment selector switches, E-STOP, 16 ft. spiral cable, 2 user configurable push buttons $495 see website QTY Put Item In Cart

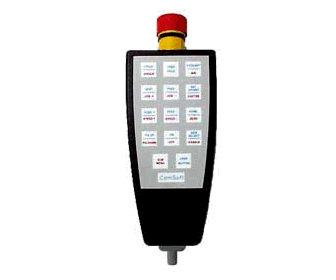

Control Mate Hand Held Controller Lightweight, low-cost hand held unit with cable. 24 user-definable push buttons. $395 see website QTY Put Item In Cart

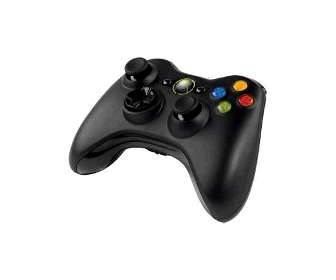

Xbox Hand Held Controller Xbox hand held controller + USB port Wireless remote station $89 see website QTY Put Item In Cart
Industrial Joy Stick 360 degree travel with pressure sensor, position record button, stream mode recording trigger and USB cable $495 see website QTY Put Item In Cart
UltraSonic Automatic Height Sensor Working Range 20mm to 250mm with 5 meter cable. $495 see website QTY Put Item In Cart
Bard Code Reader Bar Code Reader for your PC. Easy to use interface built into CNC. $495 QTY Put Item In Cart
Servo or Stepper Motors Servo and Stepper Motors with amplifiers and cables Based on size and torque. Visit www.cnccontrols.com/motors.asp
USB Hardware Key USB hardware key. Only one USB hardware key per DIY serial number. (A USB key is included with Full Service systems) NOTE: *Some products above require a USB hardware key. $59 QTY Put Item In Cart
Paper Printed Manuals Paper printed manuals. Please specify the manual names: Graphical Operator Interface, CNC Lite/Plus, CNC Professional, Installation & Hardware Wiring and Advanced System 3000 CAD/CAM. (Printed manuals are included with Full Service systems.) NOTE: PDF files will be supplied for DIY products unless a paper printed manual is ordered. NOTE: DIY Manuals are not sold separately since they would not be complete without the on-line electronic searchable documentation. $59 each CNC Professional Manual QTY Put Item In Cart CNC Lite/Plus Manual QTY Put Item In Cart Graphical Operator Interface Manual QTY Put Item In Cart Installation & Hardware Wiring Manual QTY Put Item In Cart AS3000 CAD/CAM Manual QTY Put Item In Cart
