Operator Station Kit

Mountable Operator Station Kit
LCD Screen $1,295
Touch Screen $1,695

Included Functions and Features:

  • 19" High resolution flat screen frameless monitor.
  • Monitor Screen Dimensions: 14.75" x 12"

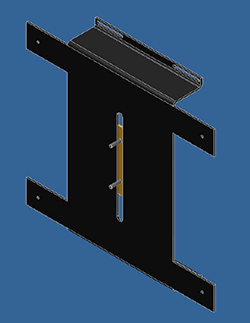

  • 2 adjustable monitor mounting brackets that will fit to any cabinet.
  • Operator Panel Plate (E-Stop, Hand Wheel, Key Switch, 2 Lit Push Buttons) and cables
  • Good when there is a pre-existing cabinet or for a new machine where mounting locations of the Operator Panel and Monitor needs to be flexible
  • Can be combined with any Hand Held Pendant or Software Level.
  • Applicable to CNC or General Factory Automation projects.
  • Operator Panel 15.75" long by 6.25" tall by 2.5" deep including buttons
  • LCD or Touch Screen model plus Bracket is 16" long by 13.5" tall by 3.5" deep including backside of monitor and bracket.
  • Prices based on number of axes, I/O and software

The touch screens sold at computer stores will work with our system, but these are really meant for medical offices or point of sale retail stores. The touch screens we use are different in 3 ways:

  1. CamSoft Industrial Touch Screens will not think someone is touching the screen or pressing a button if a water/coolant drop or sweat gets on the screen. It is made of hardened glass, which makes it extremely durable and scratch resistant. Offers a drift-free stable performance that is not susceptible to deterioration over time.
  2. We can't claim they are scratch proof but they are scratch resistant if people with dirty fingers use the touch screen. It is resistant to grease, dirt and water, which makes it ideal for CNC and Automation projects.
  3. They are brighter in luminas (candle power). Meaning with the shop's bay door open in summer standing 15 feet away at a 45 degree angle you can still see the screen clearly.
  4. Keep in mind that not all touch screens are equal. Non-industrial touch screens made for Point of Sale end users such as Grocery Stores, Hotels, Restaurants and Retail Stores have these limitations: low light output, diffused resolution images and a plastic surface which can be scratched.


------------
