CNC Tool Path Solid Modeled Graphics Simulator

for
CNC tool path animation
3D or 5 axis real-time tool simulation

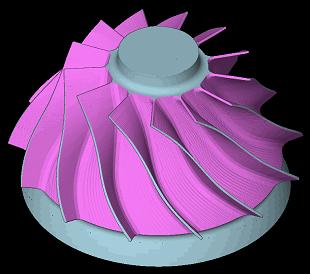

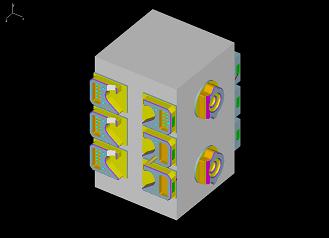

Solid Modeled Graphics






See on your screen

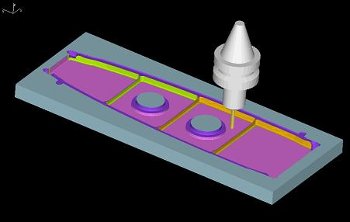

  • Simulate live cutting of standard G code tool paths using Graphics Animation
  • Solid Modeled or 3D Wire Frame viewing
  • Mill, Lathe, Router, Water Jet, Laser or Flame cutters
  • 2 versions available: Standard and Premium
  • 2-5 axis with graphically tool tilting and vectors
  • Live Feed Rate Over Ride
  • Continuous or Single Step through a G code program
  • Tool Changes
  • Multiple front, side, top and isometric views
  • Rotate or Tumble the view
  • Move the Light Source
  • Slice the part in half
  • Measure Distances, Part thickness and Volume
  • Remove chips from view

NOTE: The default system reads industry standard NIST / EIA standard G code. Custom G code file interpreters are available. Let us know what type of machine you have. Please describe the machine to us and send us a small, short typical part program example so we can confirm that your G code does not require us to customize the G&M code tables

Contact Camsoft or your Dealer for package upgrade information

------------
